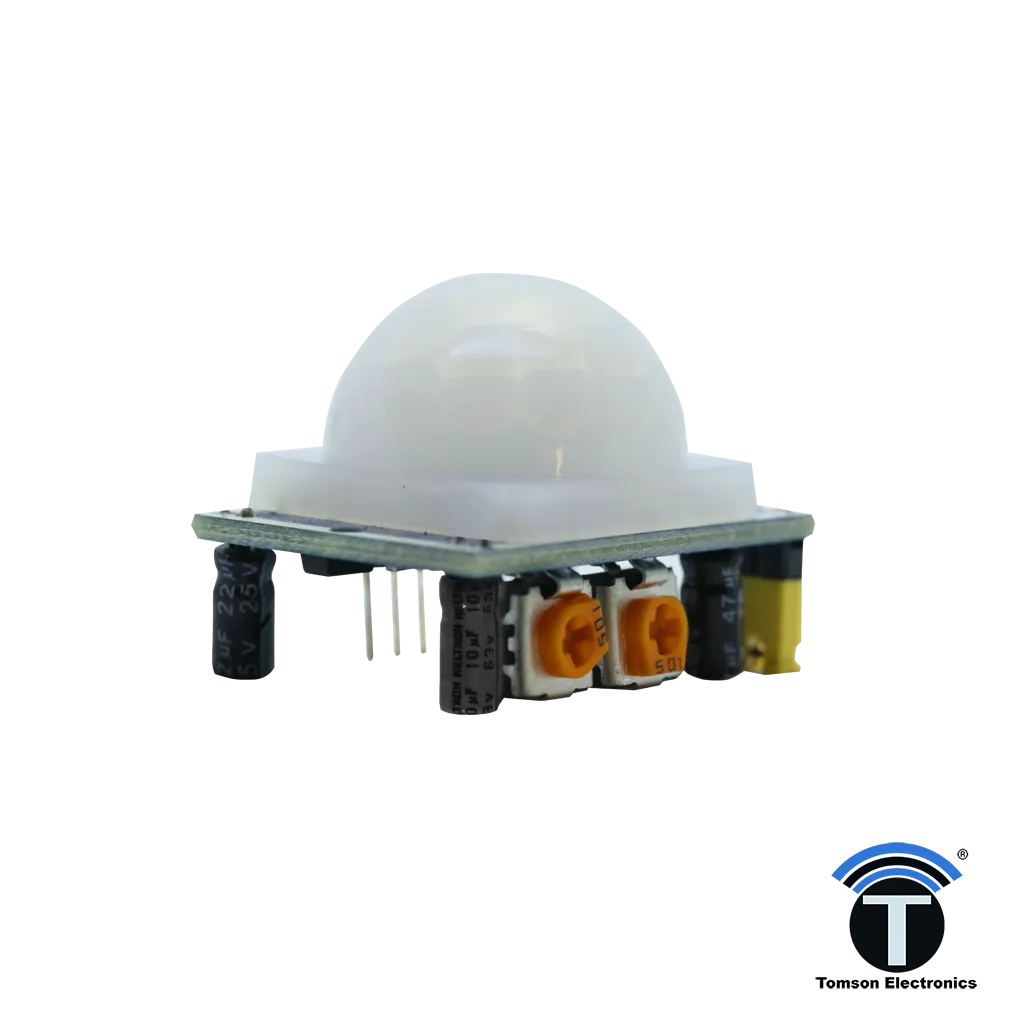

The PIR Sensor module allows you to sense motion. It is almost always used to detect the motion of a human body within the sensor's range. It is often referred to used "PIR", "Pyroelectric", "Passive Infrared" and "IR Motion" sensor.The module has an on-board pyroelectric sensor, conditioning circuitry and a dome shaped Fresnel lens.The PIR sensor module provides an output "HIGH" when a human body is detected within its range and an automatic Delay "LOW" when the body leaves its range. The delay time is adjustable using the potentiometer on-board. The minimum delay time that can be set is 5 seconds and maximum of 200 seconds.

The blocking time potentiometer is also provided on-board to set the blocking time during which the sensor does not respond to any change in motion. The minimum blocking time that can be set is 2.5 seconds and maximum of 10 seconds.

A passive infrared sensor (PIR sensor) is an electronic sensor that measures infrared (IR) light radiating from objects in its field of view. They are most often used in PIR-based motion detectors. The module has an onboard pyroelectric sensor, conditioning circuitry, and a dome-shaped Fresnel lens. The sensitivity of the module can be controlled using the potentiometers at the back side of the module. This product is breadboard friendly and can be easily interfaced with an Arduino or Raspberry Pi.

DEVELOPMENT RESOURCES:

FEATURES

Operating voltage range: DC 4.5-20V
Level output: High 3.3 V /Low 0 V
Trigger: L can not be repeated trigger/H can be repeated trigger(Default repeated trigger)
Delay time: 5-200S (adjustable) the range is (0.xx second to tens of second)
Block time: 2.5S (default)Can be made a range(0.xx to tens of seconds
Board Dimensions: 32mm*24mm
Operation Temp: -15- 70 degrees
Lens size sensor: Diameter:23mm(Default)
Color: As shown in the image

APPLICATIONS

Arduino Motion Sensor/Detector Project using PIR Sensor
Automatic switching operation of outdoor lights,
Lift lobby,
Common staircases
Automatic switching operation of garden lights based on the presence of a human being
For covered parking area
Automatic door operating system in shopping malls
