These are IN STOCK. Buy today, ships in less than a week.

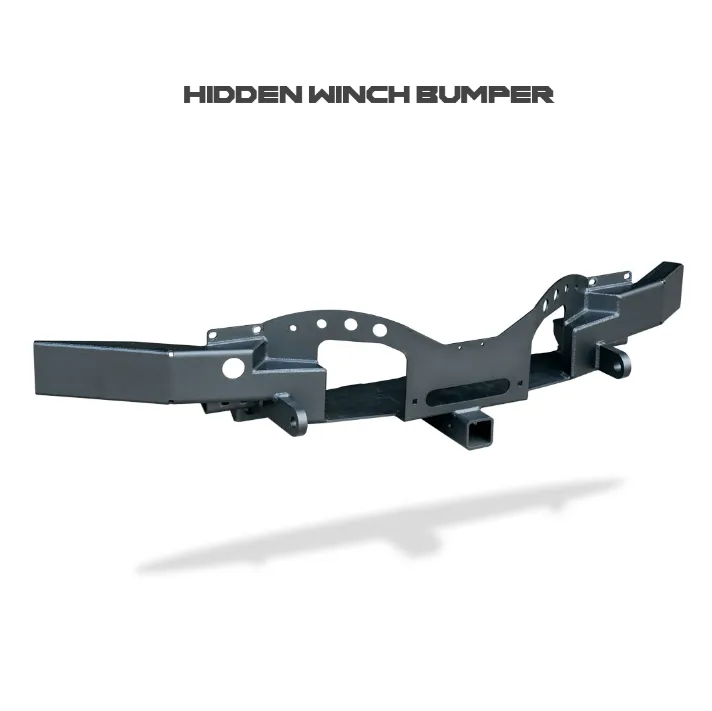

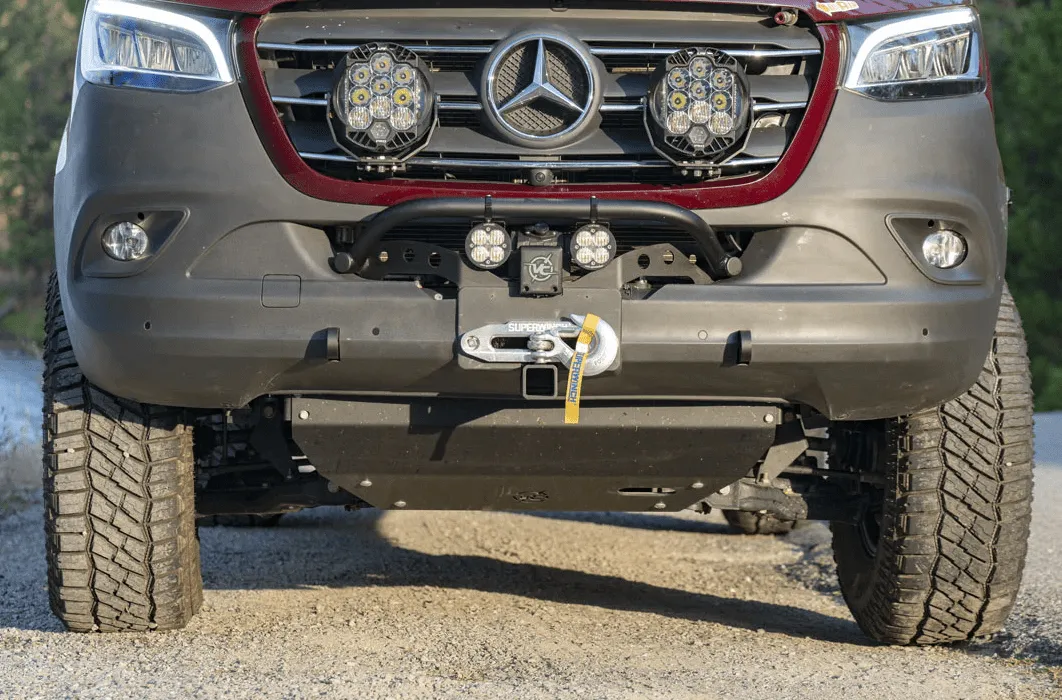

Venture onto dirt roads knowing you have a back up plan if you get stuck or a trail obstacle ahead of you is just a bit beyond your van's capability. Our winch mounting system completely replaces the factory bumper under the plastic cover. This bumper is compatible with adaptive cruise control and parking sensors. The sensor is relocated to the winch mount from the position above the step where the top of the winch needs to land.

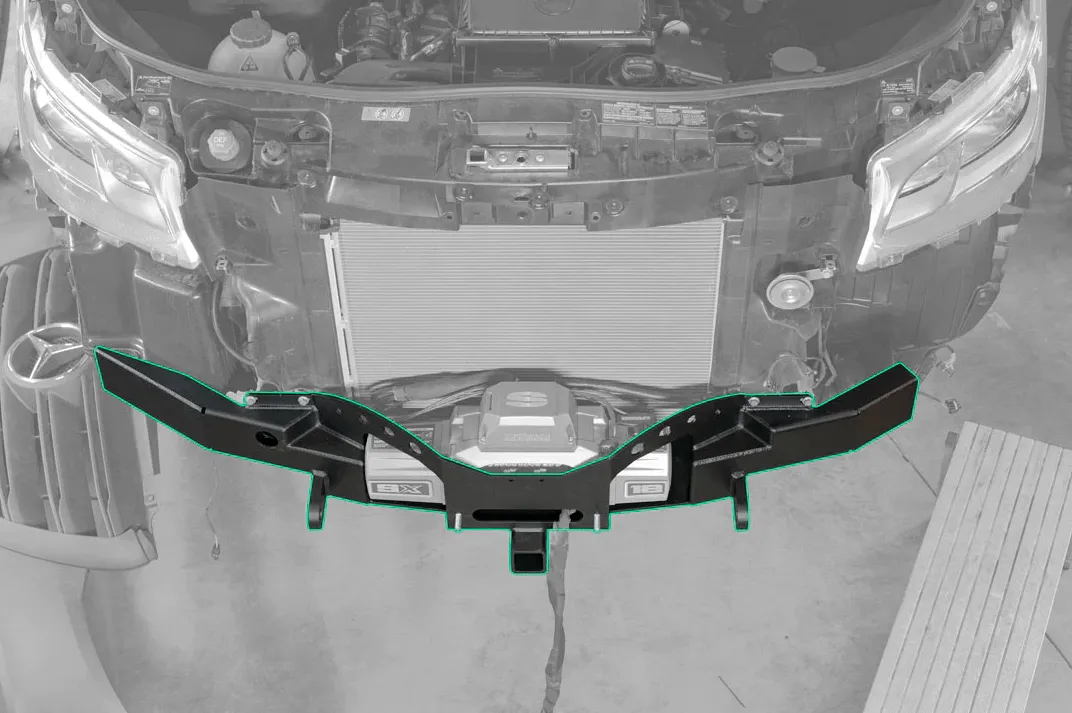

Our winch bumper retains the side impact protection the factory bumper provides. It attaches to the (8) 8mm bolts on front of the chassis and (2) 12mm on the bottom. The bottom 12mm bolts are past the crumple zone of the chassis. This helps to strengthen the mounting of this winch mount to ensure the chassis will hold up to heavy pulls and the mount will not flex.

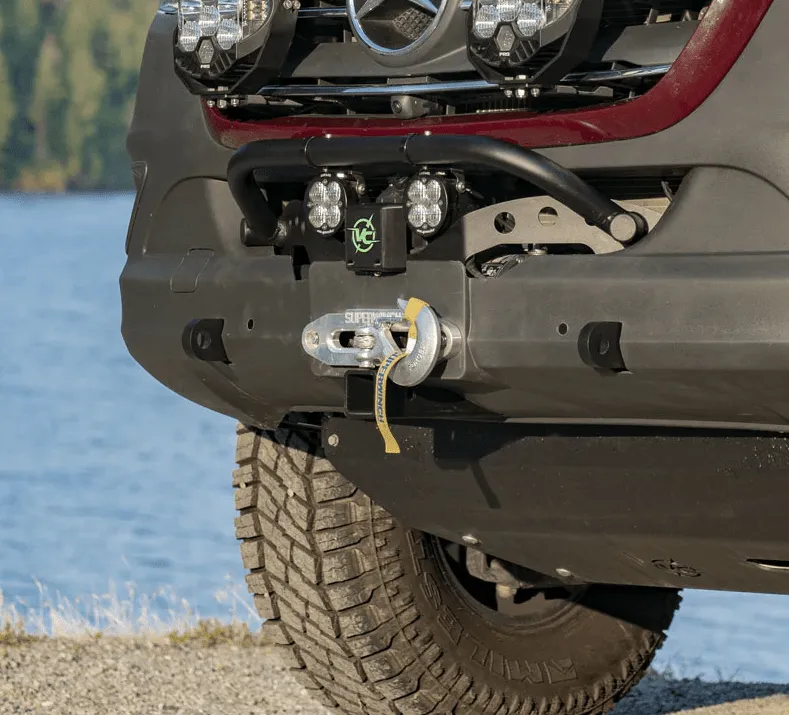

 The winch mount includes 3/4" thick steel tow points that can be attached on each side. You can choose to leave these off and use the factory "screw in" tow point if needed.

The winch mount parts go through a dual-stage powder coating process. A zinc-rich primer is applied and baked on before the final matte black finish.

• Fits 4x4 and AWD Sprinters

• Winch Sold Separately

• Designed around the Warn Zeon series of winches. Many other winches are compatible with this kit, but please reference the Warn Zeon 12-S winch for the maximum winch size.
• WARN ZEON 12 Platinum winch will work, but plug for wireless remote will contact A/C condenser. We recommend the WARN VR series winch if a wireless remote is desired.
• Not Compatible with 4 cylinder model Sprinters - Gas or Diesel
• Not Compatible with vans optioned with the HD Rear A/C, the cooling fans interfere.

Lead-Time: In Stock (ships in 1 week). This is an estimate and stock levels can change quickly.

INSTALLATION $900 AT THE FACILITY
