PRODUCT DETAILS

Description

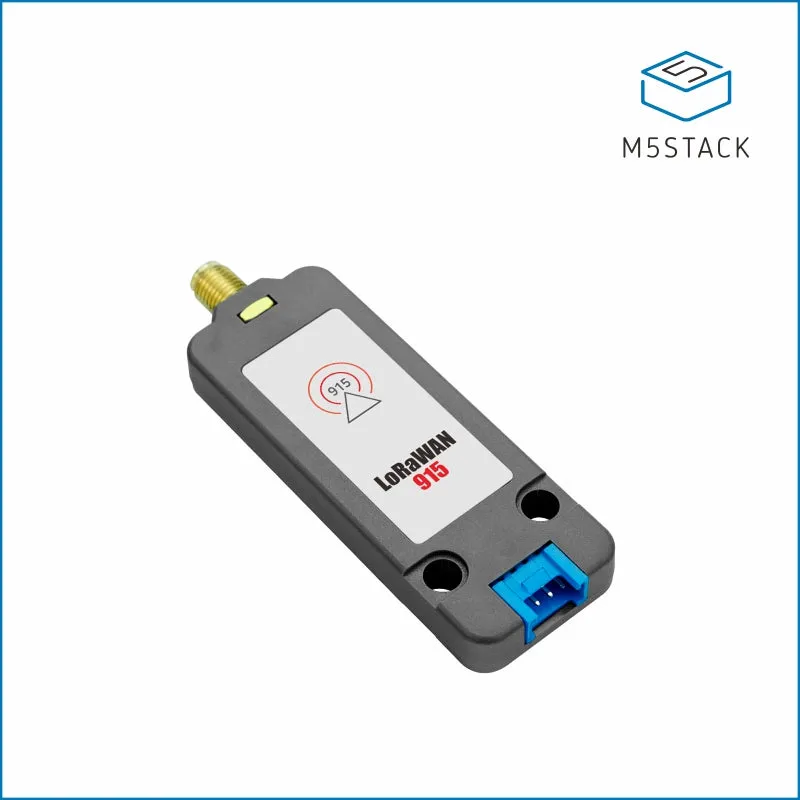

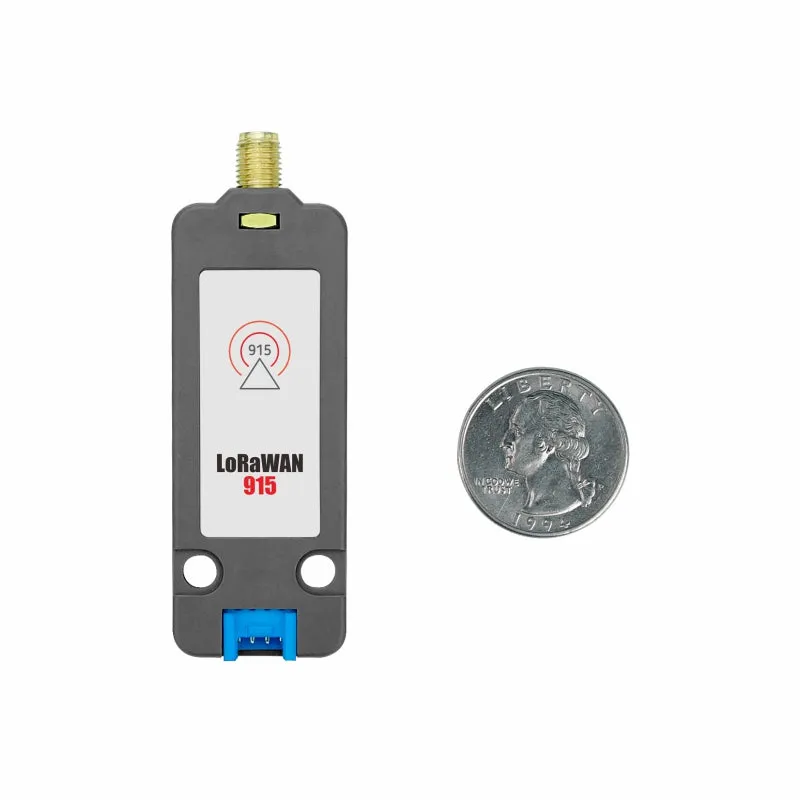

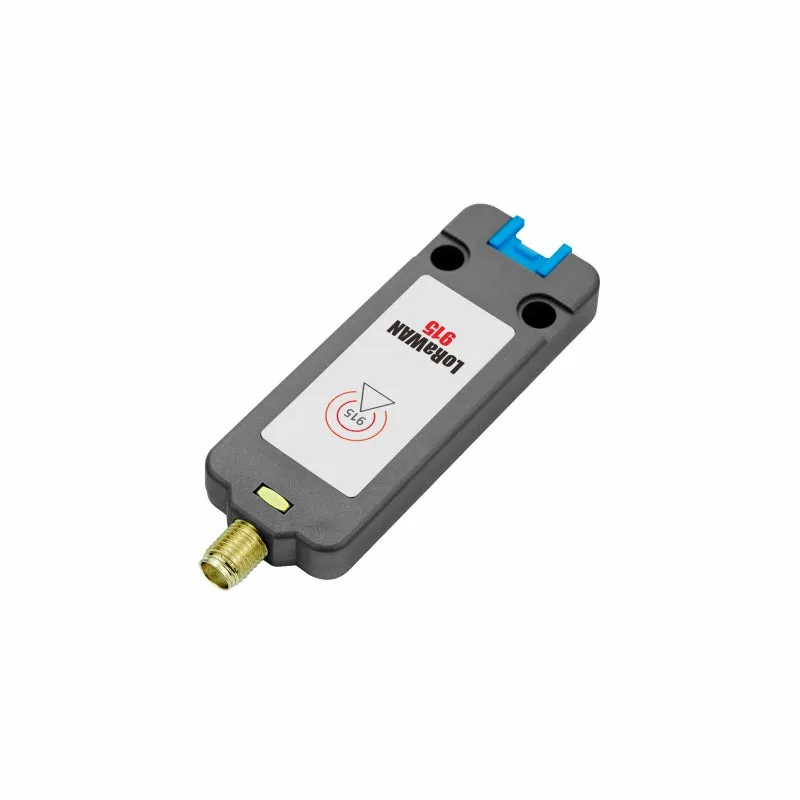

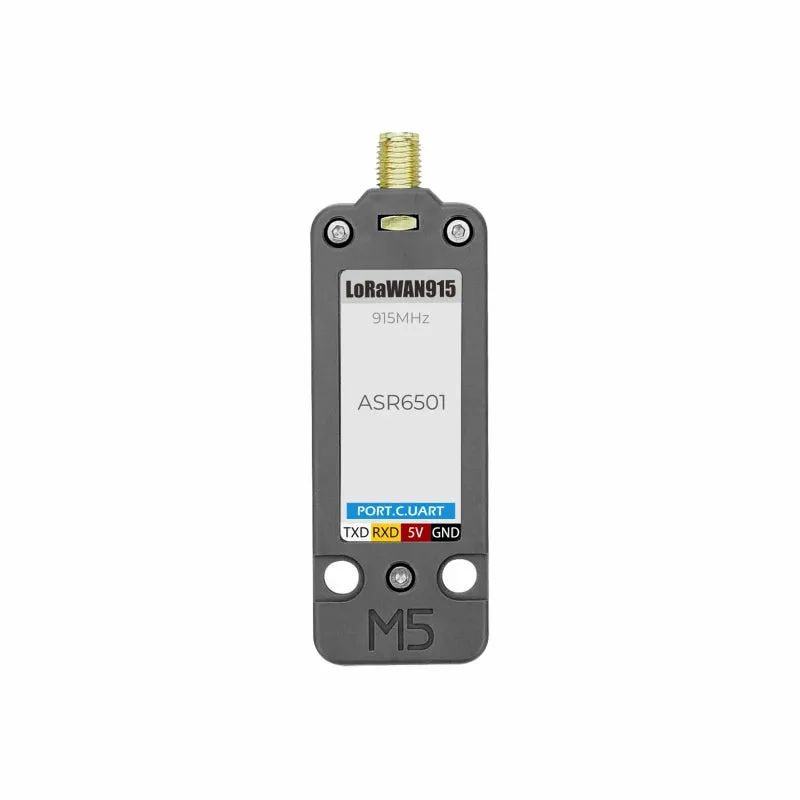

LoRaWAN915 Unit is a LoRaWAN communication module designed for the 915MHz frequency range. It is developed by M5Stack and provides long-distance communication capabilities using the LoRaWAN protocol.

The module utilizes the ASR6501 scheme, which offers a combination of ultra-low power consumption and high sensitivity. This makes it ideal for applications that require long-range communication while operating on minimal power. The LoRaWAN915 Unit integrates the LoRaWAN protocol stack, simplifying the implementation of LoRaWAN communication.

The module features a serial communication interface and can be controlled using the AT command set. This interface allows for easy integration with other devices and provides a convenient means of configuring and controlling the module's functions.

When deployed, the LoRaWAN915 Unit can act as a collection node, connecting to multiple gateways for data collection and management. This enables the module to efficiently gather and transmit data from various sensors or devices to a centralized system.

LoRaWAN915 Unit is well-suited for long-distance, low-power IoT communication applications. Examples include the deployment of environmental monitoring nodes, where the module can transmit sensor data over long distances while operating on low power. This makes it a reliable choice for IoT applications that require efficient and long-range communication.

Note:
This module supports US915 band plan only. NOT supports AU915.

Product Features

• ASR6501
• Supported US915
• SMA antenna
• Communication interface: UART
• Command protocol: AT command

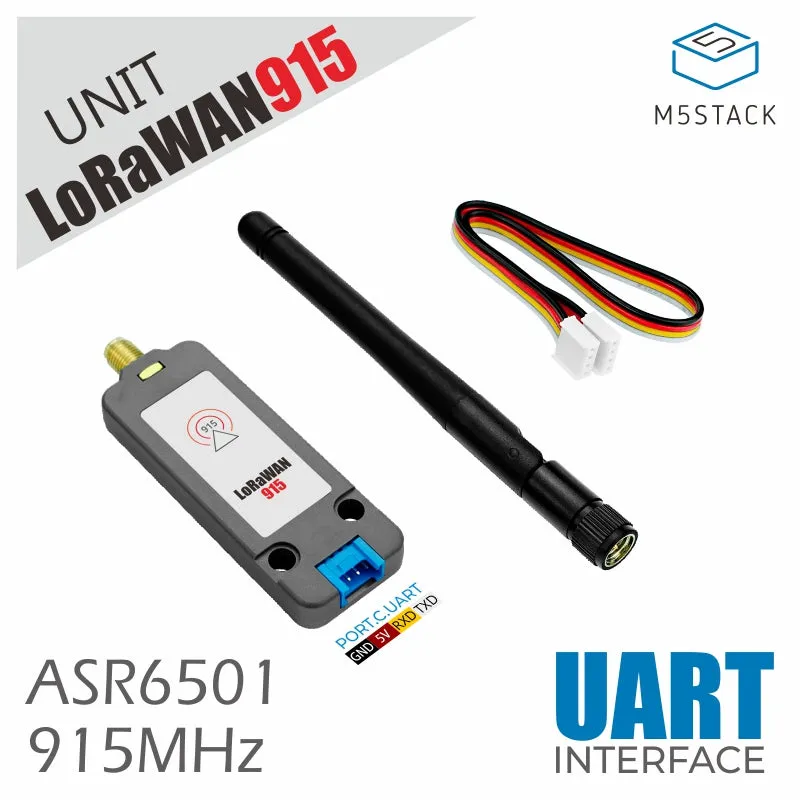

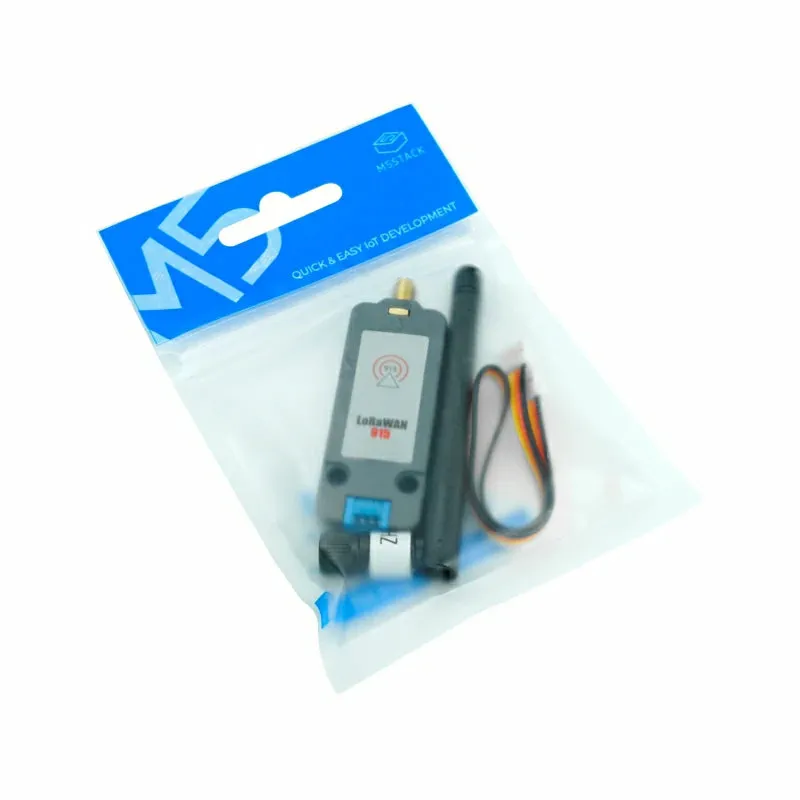

Includes

• 1x Unit LoRaWAN915
• 1x SMA antenna

Application

• Automatic remote meter reading
• Intelligent traffic intelligent parking lot
• Remote irrigation and environmental monitoring
